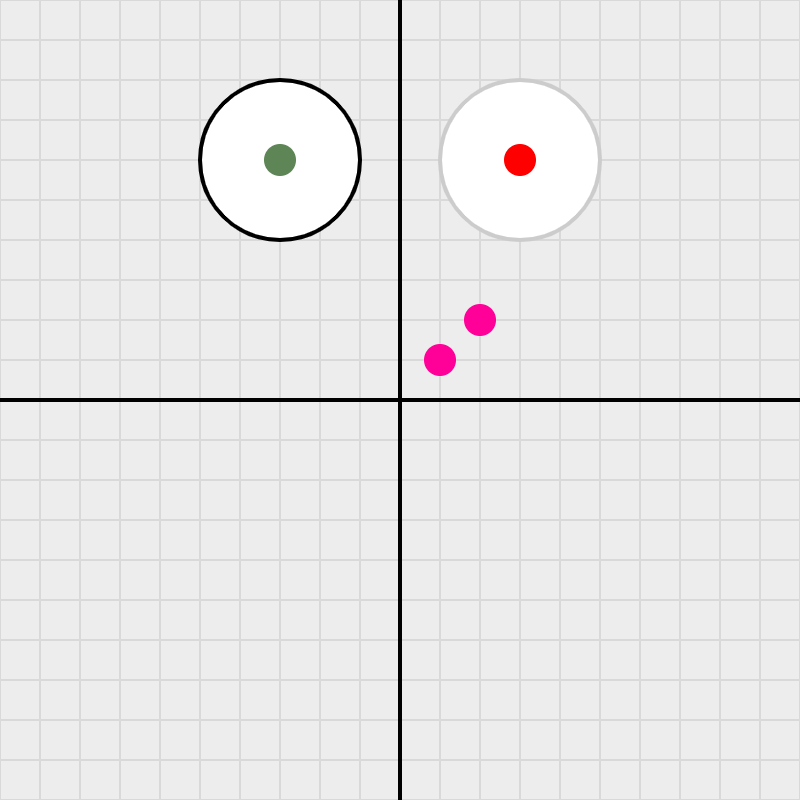

Eye 1: A Single Disk
The saga begins here. A single SWDisk is placed on a
SWGrid using SWColor for fill and stroke —
the simplest possible foundation for what will become a fully interactive eyeball.
Eye 2: Transparency & Layering
The sclera disks get a colored background and a semi-transparent fill via
setFillAlpha(). Center points are hidden — setting the stage
for a second SWDisk to be layered on top as the pupil.
Eye 3: Iris & Pupil
A second SWDisk is layered on top of each sclera to form the
iris and pupil. A thick stroke creates the colored iris ring; a smaller
radius and dark fill produce the pupil — all from the same class.
Eye 4: Glints
A glint highlight is added using polar coordinates to place a small
white SWDisk at a precise angle from the pupil center —
making the eye look alive with a single extra disk.
Eye 5: Two Glints
A second, smaller glint at 315° joins the primary highlight,
using a compounded glintFactor² and a shorter distance
to create a subtle bottom-right accent that adds depth and visual hierarchy.

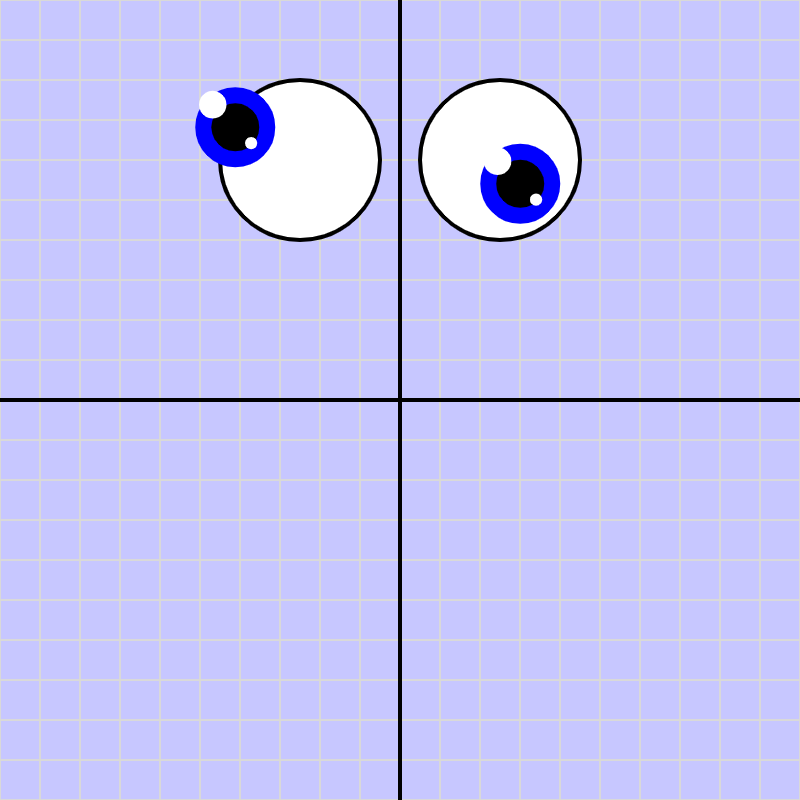

Eye 6: Draggable Pupils
Both pupils become interactive — drag either one inside its sclera
and the glints follow automatically, using stored Cartesian offsets
and SWPoint.setDraggable().
Eye 7: The SWEyeball Class
14 variables and a drag system collapse into two constructor calls.
SWEyeball encapsulates sclera, pupil, and both glints —
with full drag interaction delegated through handle* methods.
Eye 8: The Sketch Didn’t Change
Pupil constraints were added to SWEyeball — the pupil
now stays inside the sclera. The sketch required zero changes.
Same constructor calls, same drawOnGrid(), same handle* delegation.
This is Open/Closed in action.
Eye 9: The Pupil Has an API
Randomize, Track mode, and a live iris color picker wire up to
setPupilOffset() and setIrisColor() — without
touching the constructor. A stable method surface lets any UI control
become a client of the class.
Eye 10: Eyes That Follow
lookAt() drives both pupils toward the mouse every frame.
Turn Track off: each eye sits at a different spot, so each one
calculates a slightly different angle to the cursor — just like real eyes
converge when you look at something close.
That effect was never explicitly coded; it fell out automatically once two objects
each did honest math from their own position.

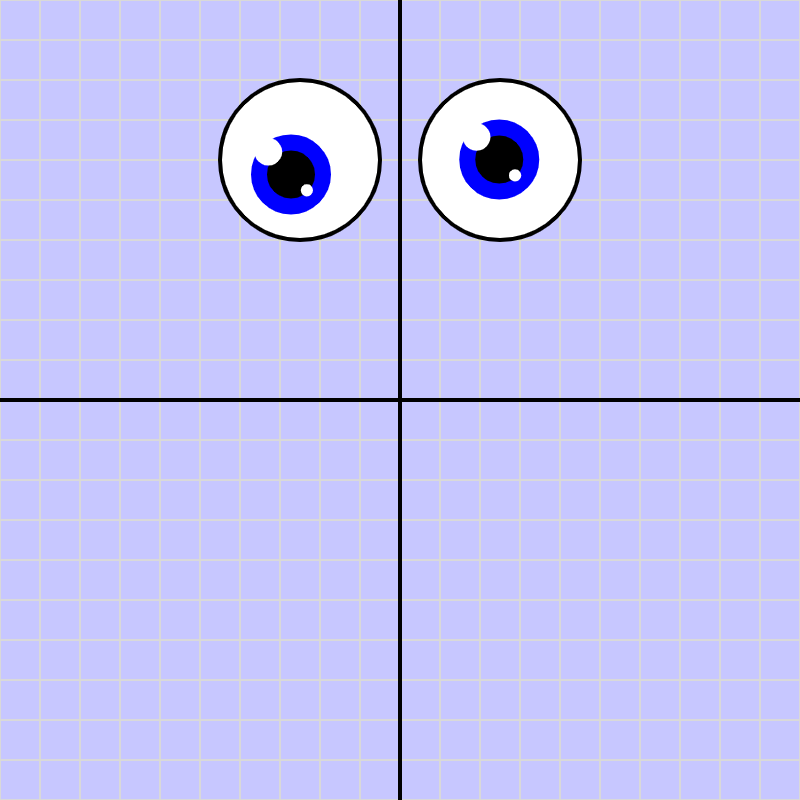

Eye 11: Looking Around!
lookingAround() is another method that implements Perlin Noise to yield smooth, natural eye movements. The pupils wander independently, constrained by the same math as dragging, so they never leave the sclera. It’s a fun way to add life to a character when you don’t want the eyes locked on the cursor.
